ACPR-3(FL) Filtered Pre-Amplifier
Data sheet, features and applications for the ACPR-3(FL).
For use with CGM-7 / CGM-5R

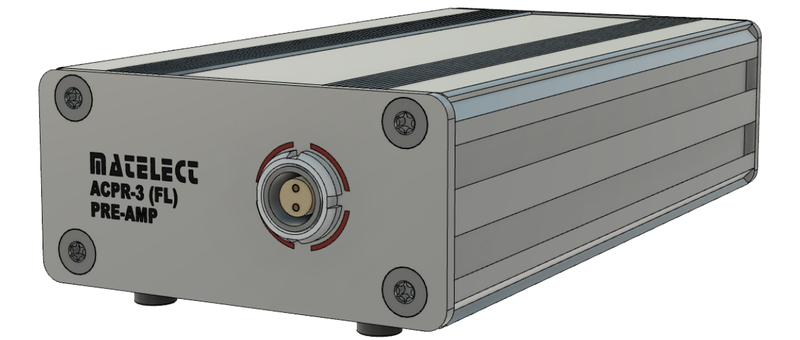

ACPR-3(FL) Filtered Pre-Amplifier
The ACPR-3(FL) is a filtered pre-amplifier developed specifically for use with the CGM-7 and CGM-5R. When using an induction furnace for high-temperature experiments, the induction coils can affect the ACPD test signal, so a filter is required to cut out the high-frequency interference.
As standard, these units have a 10kHz cut-off frequency; other cut-off frequencies are available on request.
Features
- High-grade analogue circuitry rejects induced signals from the environment while allowing the measured signal through
- 10kHz cut-off frequency as standard, other cut-offs available on request
Applications
- For use with CGM-7 and CGM-5R ACPD units
- Filters signals from induction ovens and other high electromagnetic sources that would otherwise affect readings
